| Nguồn gốc: | Thượng Hải, Trung Quốc |
|---|---|
| Hàng hiệu: | BAXIT |
| Số mô hình: | BXT-FY-10L |
| Số lượng đặt hàng tối thiểu: | 1 |
| Giá bán: | USD1542.9-13084 |
| Thời gian giao hàng: | 3-7 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp: | 9999 đơn vị |
| Product model: | 10L-20L | Design pressure: | ≤12.5Mpa-22Mpa |
|---|---|---|---|
| Maximum temperature: | ≤350℃ | Heating method: | Electric heating |
| Temperature control accuracy: | ±1.0℃ | Heating power: | 8KW 10KW |
| Stirring speed: | 50-500r/min | Motor power: | 250WGear motor |
| Temperature controller: | With self-setting function intelligent digital temperature control meter, with automatic constant temperature function, with speed display and stepless speed regulation function | remark: | Can be customized according to customer needs |
| Điểm nổi bật: | Stainless Steel High Pressure Autoclave Reactor,Lifting High Pressure Reactor,50L High Pressure Reactor |
||

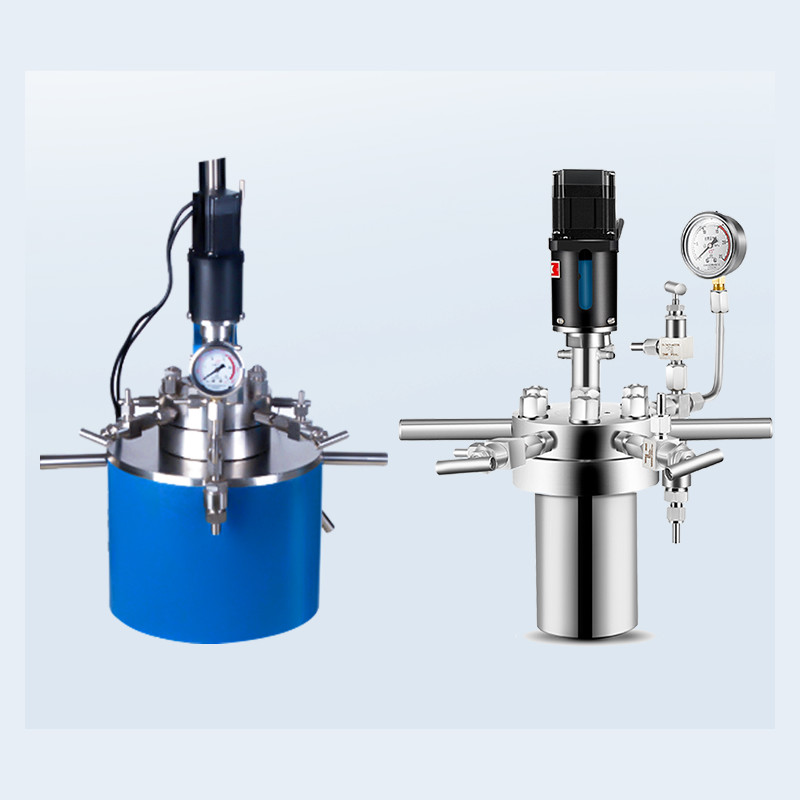

Lifting high pressure reactor stainless steel lifting BXT series mechanical stirring
Elevating high-pressure reactor
The opening of the reactor: gas phase port with needle valve, liquid phase port with needle valve and kettle insert bottom tube, pressure gauge safety blasting port, charging port, solid inlet with wire plug, temperature measurement and control port with platinum resistance, cooling coil inlet and outlet water nozzle in the reactor: stirring blade is propelled.
| Product model | 0.1L | 0.25L | 0.5L | 1L | 2L | 3L | 5L | 10L-20L | 30L-50L | 100L |
| Design pressure | ≤12.5Mpa-22Mpa | ≤9.8Mpa | ||||||||
| Maximum temperature |
≤300℃ | ≤350℃ | ||||||||
| Heating method | Electric heating | |||||||||
| Temperature control accuracy |
±1.0℃ | |||||||||
| Heating power | 0.5 KW |
0.7 KW |
1 KW |
1.5 KW |
2 KW |
3 KW |
4 KW |
8KW 10KW |
12KW | 18KW |
| Stirring speed | 5-1000r/min |
50-60 r/min |
50-500r/min | |||||||
| Motor power | 40w | 40w | 80W | 80W | 150W | 150W | 150W | 250WGear motor |
400WGear motor |
|
| Temperature controller |
With self-setting function intelligent digital temperature control meter, with automatic constant temperature function, with speed display and stepless speed regulation function |
|||||||||
| agitator | Conventional manual lifting/optional automatic lifting, using static seal structure, stirrer and motor rotation using magnetic coupler connection |
|||||||||
| material | Conventional 304 stainless steel /316 stainless steel options | |||||||||
| remark | Can be customized according to customer needs | |||||||||
