Nguồn gốc: | Trung Quốc |
---|---|
Hàng hiệu: | BAXIT |
Chứng nhận: | CE |
Số mô hình: | PM29343-86.12 |
Số lượng đặt hàng tối thiểu: | 1 |
Giá bán: | USD793/unit |
chi tiết đóng gói: | Hộp hộp |
Thời gian giao hàng: | 3-5 ngày làm việc |
Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Khả năng cung cấp: | 2000 đơn vị / tháng |
Đầu bơm: | Thép không gỉ | Cơ hoành: | PTFE |
---|---|---|---|
Van: | PTFE | <i>Flow rate at atm.</i> <b>Tốc độ dòng chảy tại atm</b> <i>pressure (l/min)</i> <b>áp suất (l/phút): | 6 |
<i>Max.</i> <b>Tối đa.</b> <i>operating pressure (bar)</i> <b>áp suất vận hành (bar)</b>: | 2,5 | Nhiệt độ môi trường cho phép (°C): | 5-40 |
Nhiệt độ môi trường cho phép (°C): | 5-240 | Imax (A): | 0,5 |

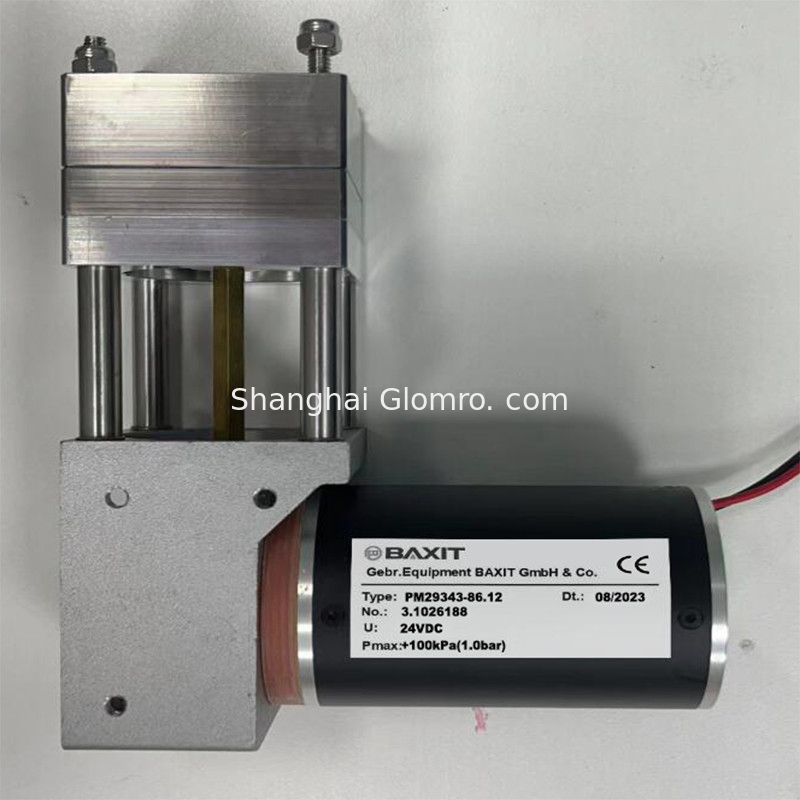

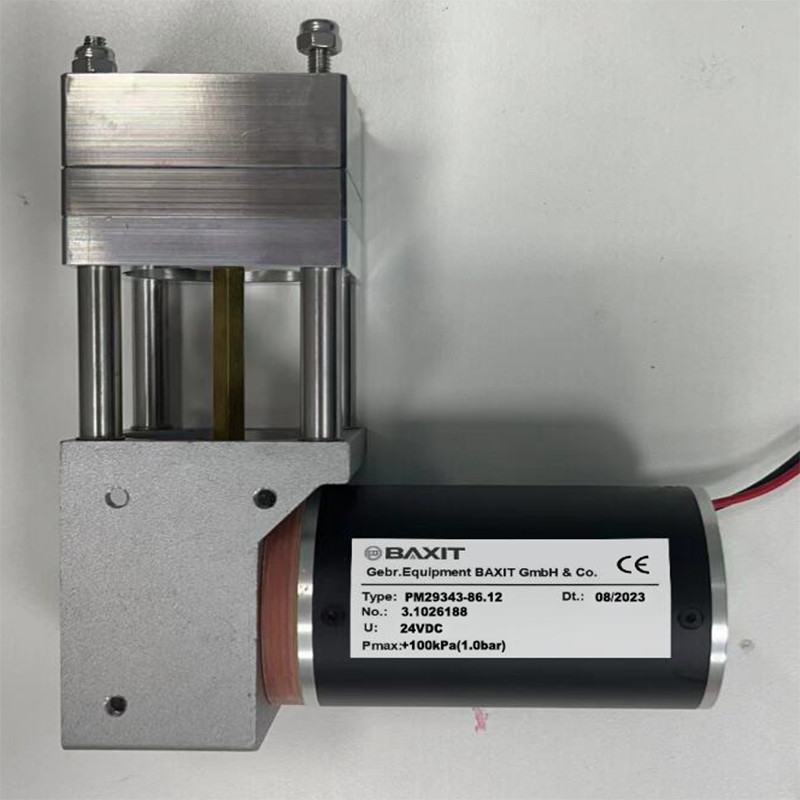

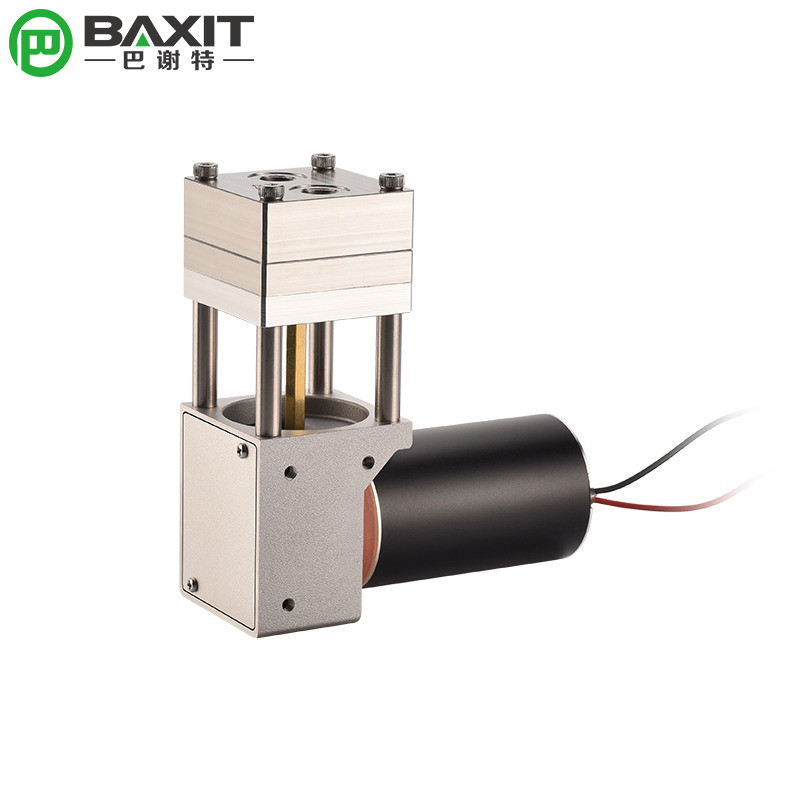

KNF 24V Temperature Resistant Mini Diaphragm Gas Sampling Pumps PM29343-86.12
Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.
Technical Parameters:
(1) Model: PM29343-86.12
(2) Air pumping capacity: 6 L/min
(3) Power supply: 24VDC
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: Pmax: 2.5 Bar
(7) Power: 60W
(8) Weight: 1.3 Kg
Installation method:
This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.
Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
